RM3

RM3 is a high-performance rotary cooler for 8 mm IDCA. The RM3 has embedded digital drive electronics enabling simplifying integration, and thus provides a compact and lightweight cooling solution for various applications. The RM3 can be delivered in 4 variants depending on your requirements. The drive voltage can be either 12 V or 24 V and the stator can be either smooth or finned depending on your heatsinking options.

Benefits

• Compact & lightweight
• Embedded drive electronics
• Quick factory tuning & mode setting (temperature set point, standby, etc.)
• Easy stator subassembly for easier maintenance

Features

Typical performance @ 20°C

• Cooling Power: > 600 mW @ 77 K
• Cold temperature range: 70 K - 150 K
• Standard Input Voltage: 12 Vdc / 24 Vdc
• Steady State Input Power: < 4 Wac @ 180 mW, 77 K
• Cool Down Time: < 4:30 min @ dewar 356 J, 77 K
• Reliability: > 17,000 hours
• Max. Dimensions: 117.5 x 71 x 56 mm
• Weight: < 450 gr
• Cold Finger Ø: 8 mm IDCA
• Operating Temperature: - 46°C to + 85°C
• Acoustic noise: < 45 dBA

Applications

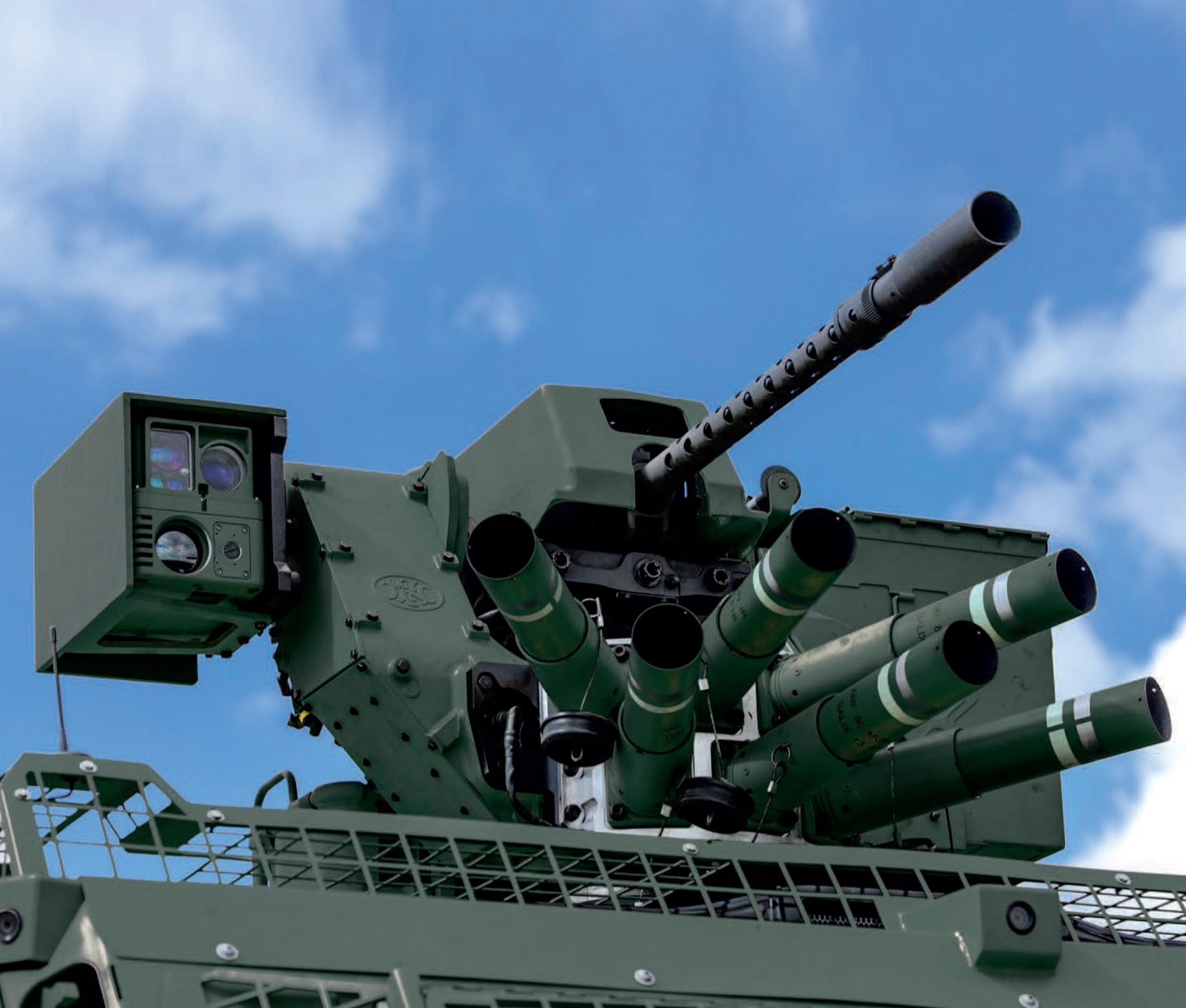

• Vehicle-mounted cameras
• Surveillance IR-camera systems
• Gas detection
• Space
